The Upright Dual Temperature Dual Top Cooling Freezer is a professional-grade refrigeration solution designed for supermarkets, restaurants, and retail stores.
It features two separate temperature zones, each powered by an independent dual top-mounted cooling system, enabling simultaneous refrigeration and freezing within one cabinet.
This design offers precise temperature control, energy efficiency, and outstanding reliability for diverse commercial applications.
Applications of Freezer:
| Application | Function | Typical Use |
|---|---|---|
| Supermarkets & Hypermarkets | Simultaneous cooling and freezing | Frozen food, fresh produce, beverages |
| Restaurants & Cafés | Ingredient preservation | Meat, dairy, desserts |
| Convenience Stores | Dual-purpose display | Cold drinks and frozen snacks |
Technical Specifications:
| Model | BCD-168 | BCD-208 | BCD-238 | BCD-288 |
| Temperature (°C) | 0~10|≤-18 | 0~10|≤-18 | 0~10|≤-18 | 0~10|≤-18 |
| Volume (L) | 115 (freezer) / 53 (chiller) | 148 (freezer) / 60 (chiller) | 170 (freezer) / 68 (chiller) | 202 (freezer) / 86 (chiller) |
| Power (W) | 73 | 78 | 86 | 91 |
| Net Weight (Kg) | 39 | 49 | 60 | 66 |
| Compressor | Donper / Wanbao | Donper / Wanbao | Donper / Wanbao | Donper / Wanbao |
| Refrigerant | R600a | R600a | R600a | R600a |

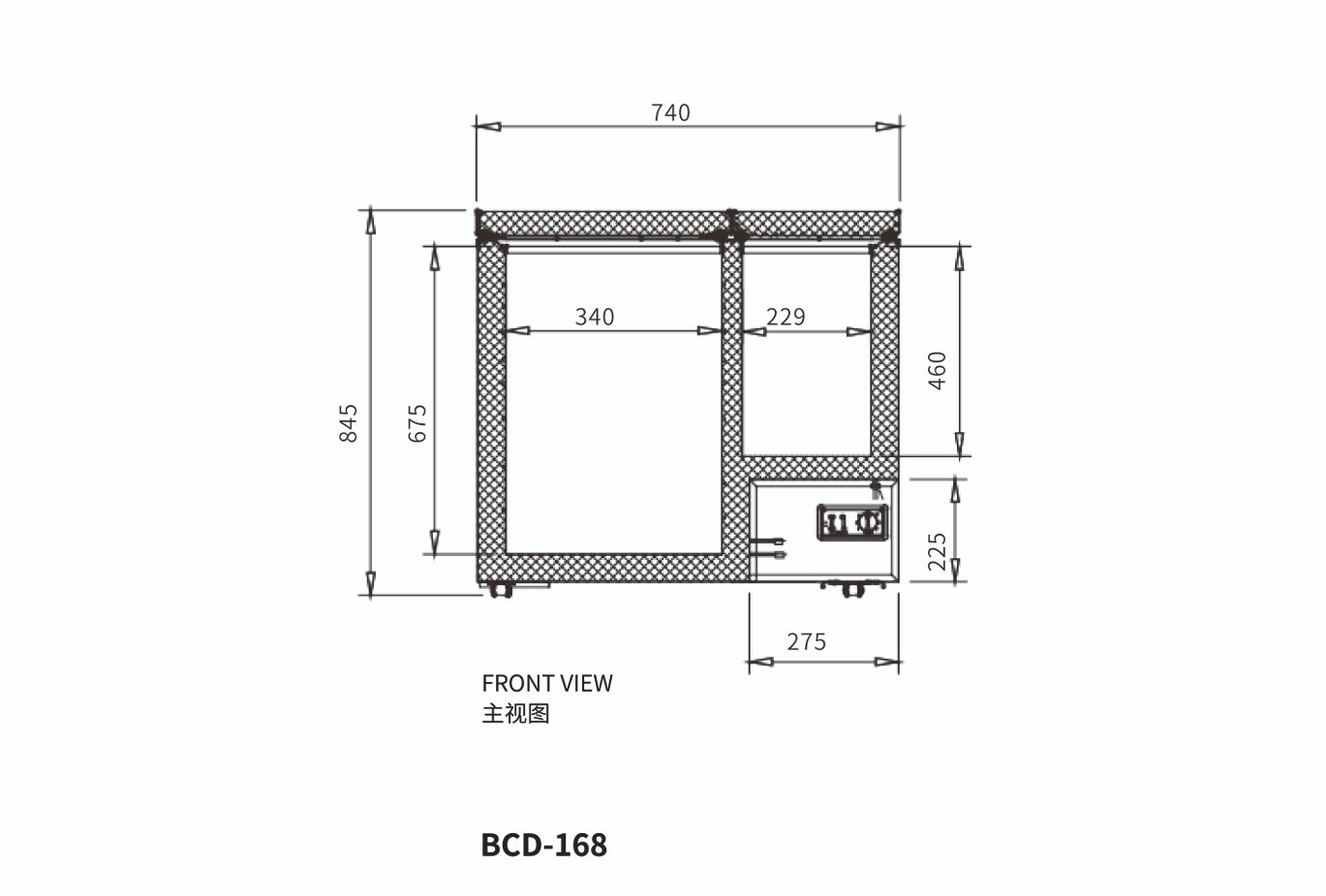

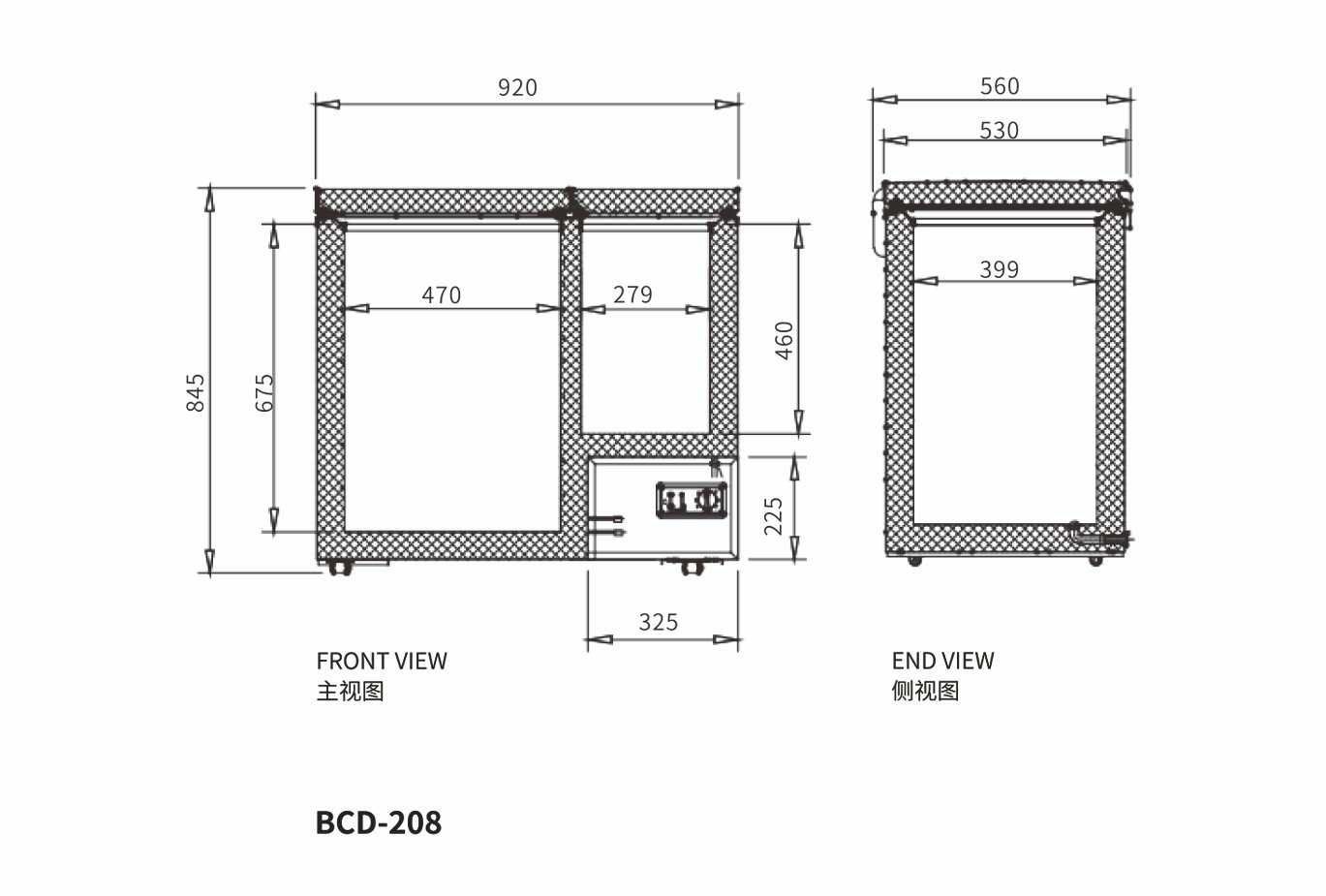

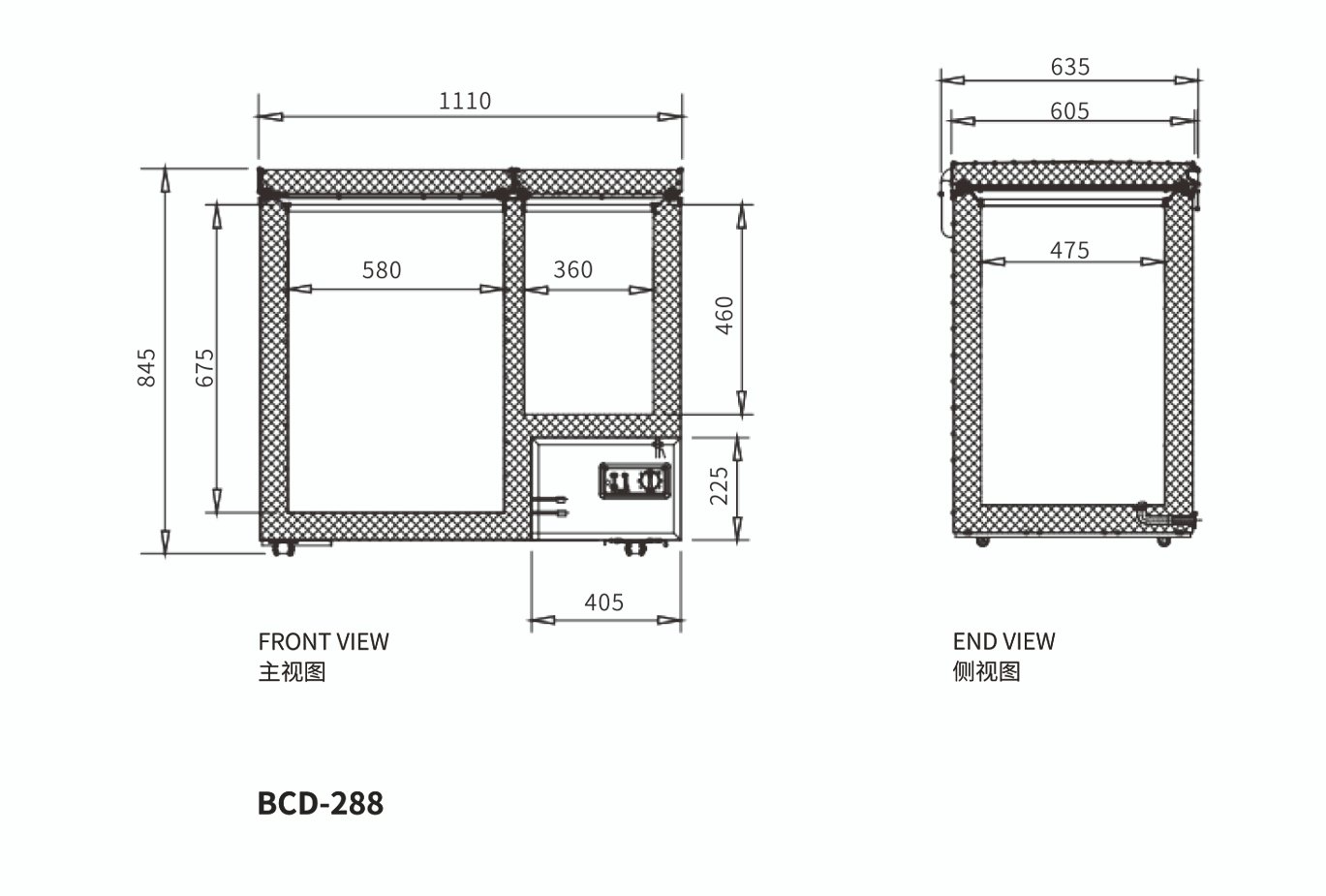

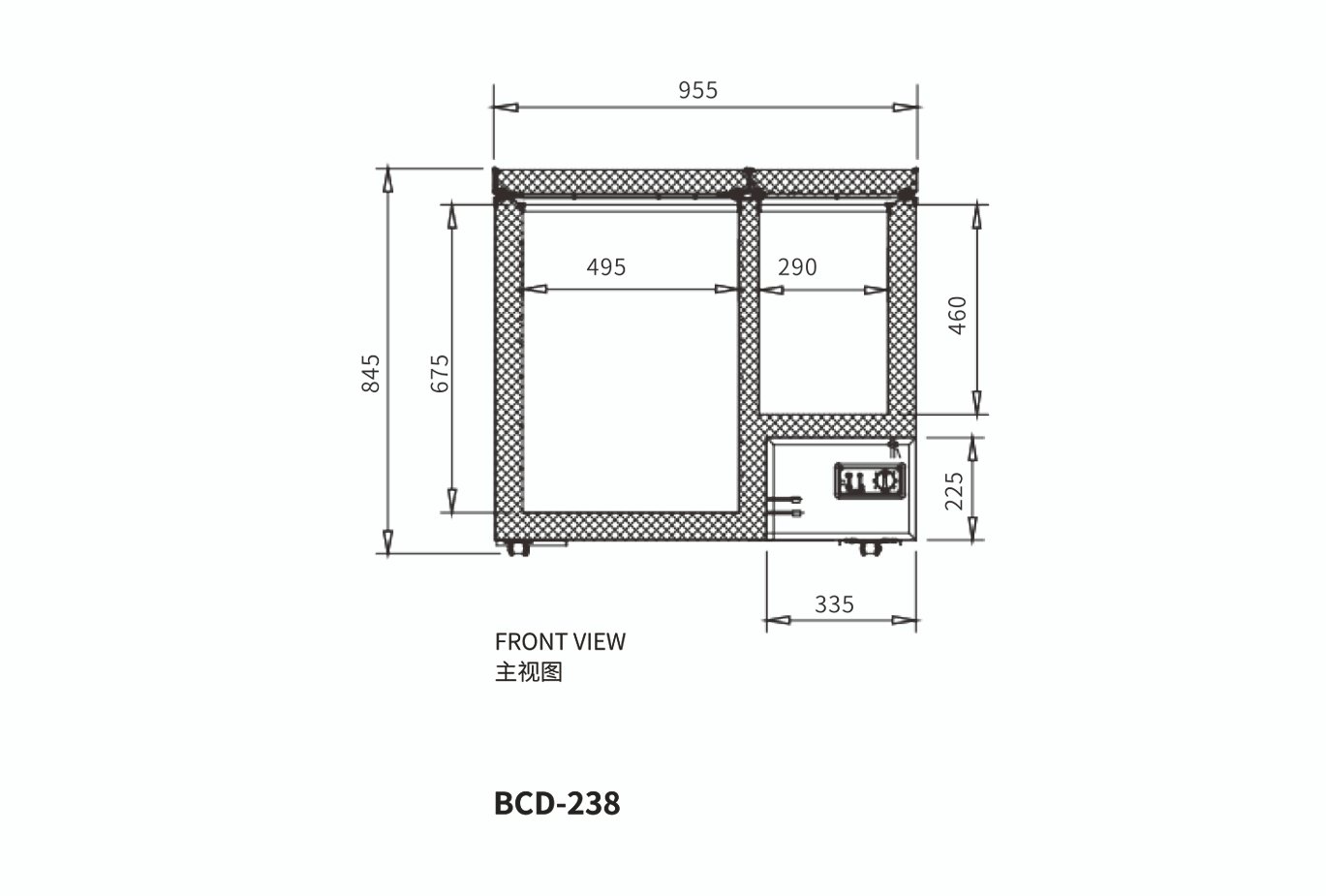

| Dimensions (mm) | 740*560*845 | 920*560*845 | 955*635*845 | 1110*635*845 |
